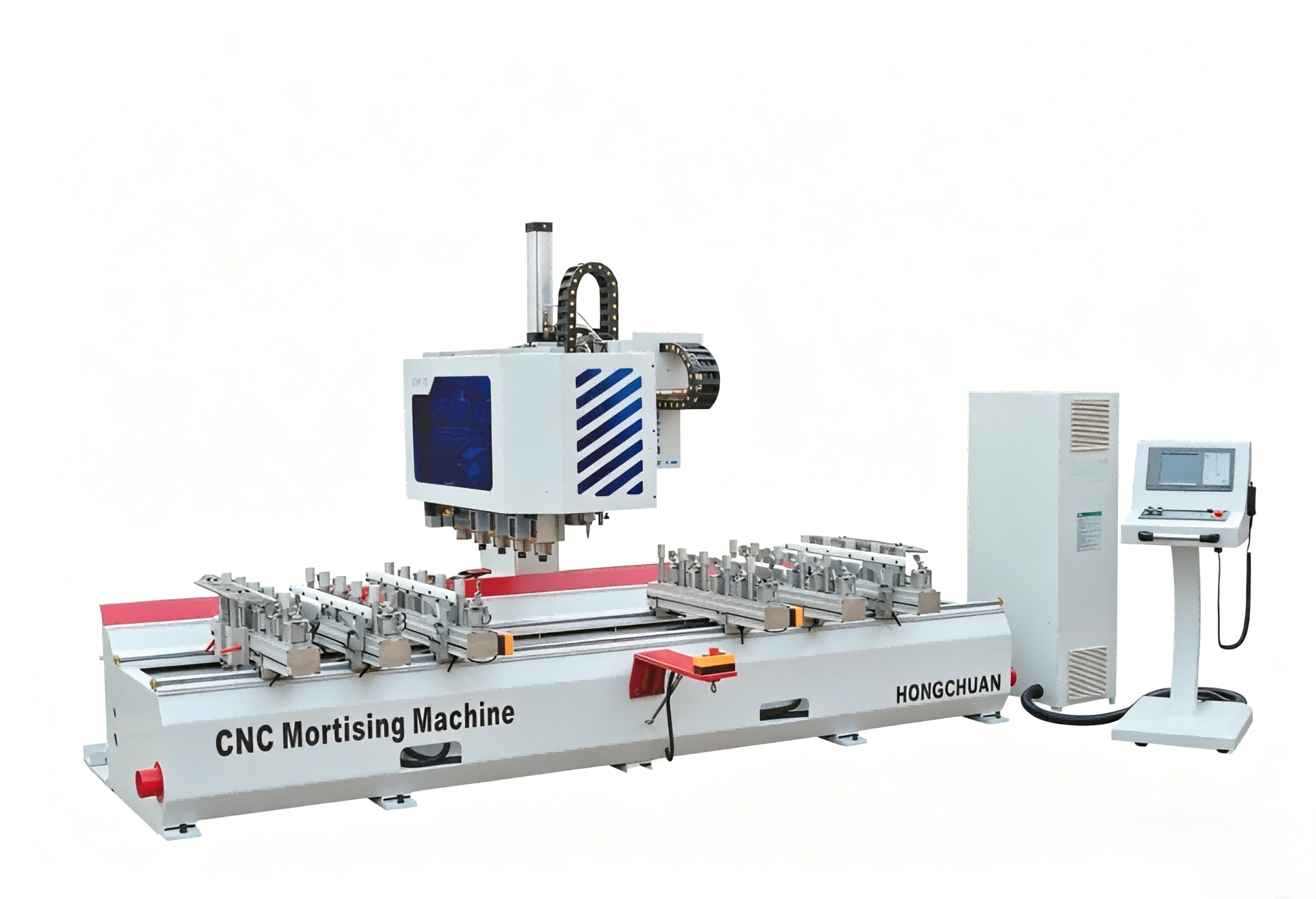

产品特点:
生产效率高:多轴多工位、高速连续铣削, 一组工件加工的同时,其他工作进行装卸,不间断生产。
调整更方便:采用先进的数控系统,人机对话界面,简单易学,普通工人经过简单培训即可操作。
可根据工件选择操作模式,利用CNC 标准编程模式操作。利用对刀杆进行对刀,对点即自动生成加工程序。
精准度更高:数字化输入, 一组工件一次定位加工完成,确保工件高质量、高精度。

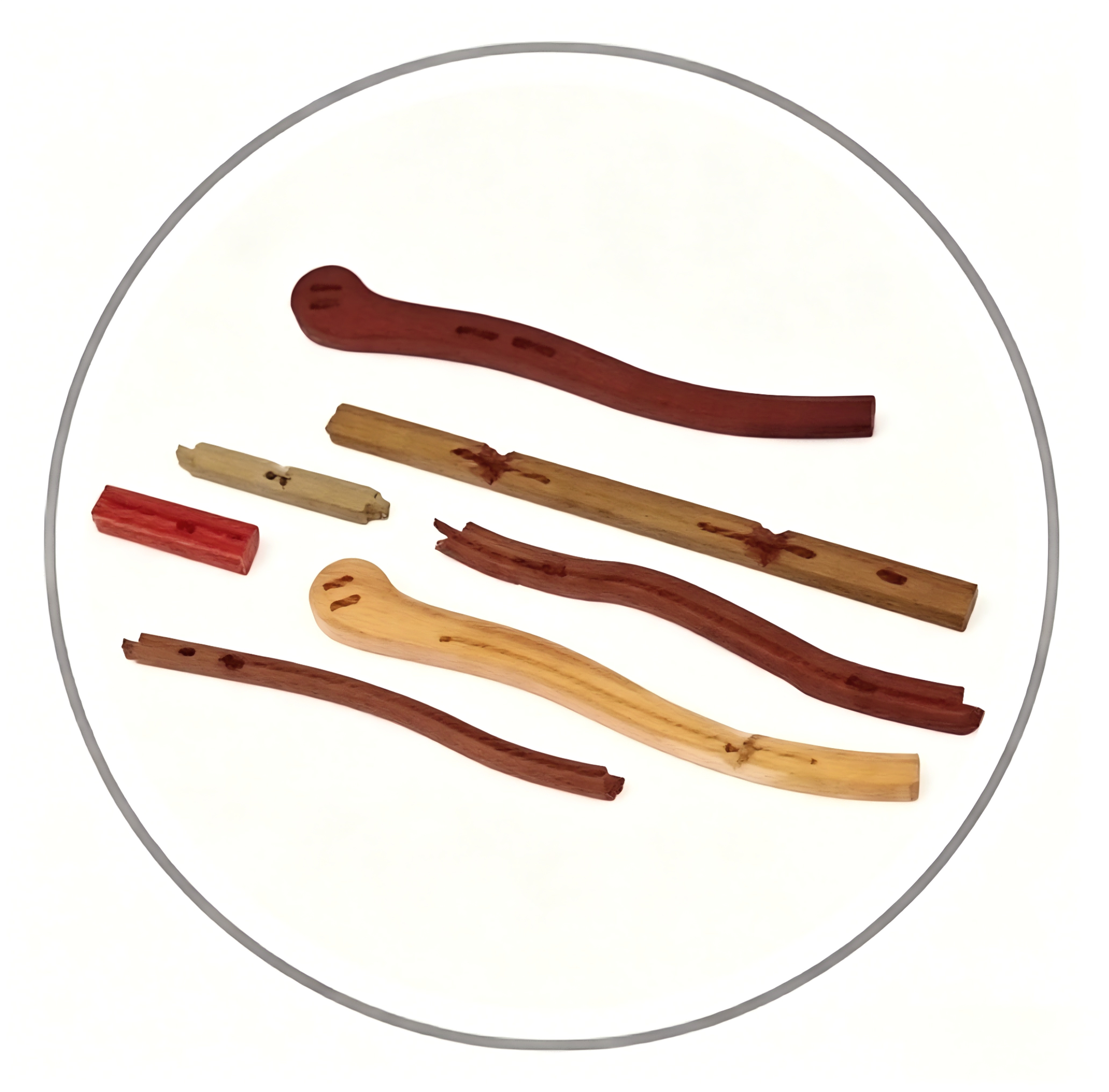

适用面更广:适用于加工各种不同形状、不同规格榫槽(孔)的工件,实用性强,尤其对于多榫槽、榫槽间距较小、孔槽组合、
同一工件榫槽长度和深度不同以及复杂的异形工件加工有显著优势。
Product Features:
High productivity:Multi-axis multi-position,high-speed continuous milling,while a group of workpiece are proceeding,
other work are proceeding at the same time,uninterrupted production.
Adjustment is more convenient:adopt advanced numerical control systems,human-machine interface,easy to learn and
ordinary workers through simple training to operate.Operater can choose programming mode according to
the workpiece,adopt CNC standard programming mode.Adopt knife holder,automatically generated machining program.
Higher accuracy:digital input,positioning of a group of a workpiece processing is completed at one time,which ensure quality
and precision of the workpiece.
Broader application:suitable for processing a variety of different shapes,different sizes tongue and groove (hole)of
the workpiece,which is practical,it has significant advantage especially for multiple tongue and groove, small spacing, workpieces.
| 规格及型号 | Specifications & Models | MSK3725X2 |
| 最大榫槽尺寸 | Max.mortiser width | 25.4mm |
| 最大榫槽深度 | Max.mortiser depth | 100mm |
| 主轴转速 | Spindle speed | 18000r/min |
| 安装功率 | Install power | 19.9kw |
| 吸尘口 | Dust exit | Φ100mm |
| 工作气压 | Air consumption | 0.6MPa |
| 外形尺寸 | Overall dimensions | 4300*2200*2450mm |
| 床身重量 | Bed weight | 2800kg |
