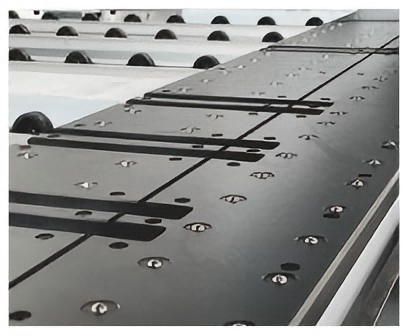

气浮珠主台面

Air floating bead main table

4组可移动气浮台搭配气浮珠主台面，A级抗倍特板材高温压制防止板面刮伤，表面耐磨、不易变形老化，小板堆置更便捷。

Four movable air-floatation tables with bead-equipped main platform. Class A compact laminate, hot-pressed to

 prevent scratches, offers wear resistance and anti-aging durability. Streamlines small-panel stacking.

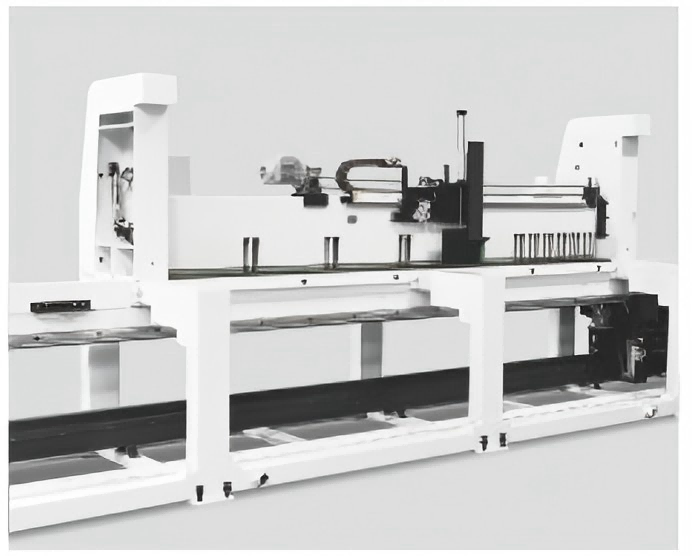

重型加高压梁

Heavy duty high-pressure beam

采用加高压梁，能够承受较高的压力和重量，具有高稳定性和高精度，保证锯切的精度和稳定性。

Featuring a reinforced high-pressure beam, the machine is capable of withstanding high pressure and heavy

 loads, offering high stability and precision to ensure accurate and stable sawing performance.

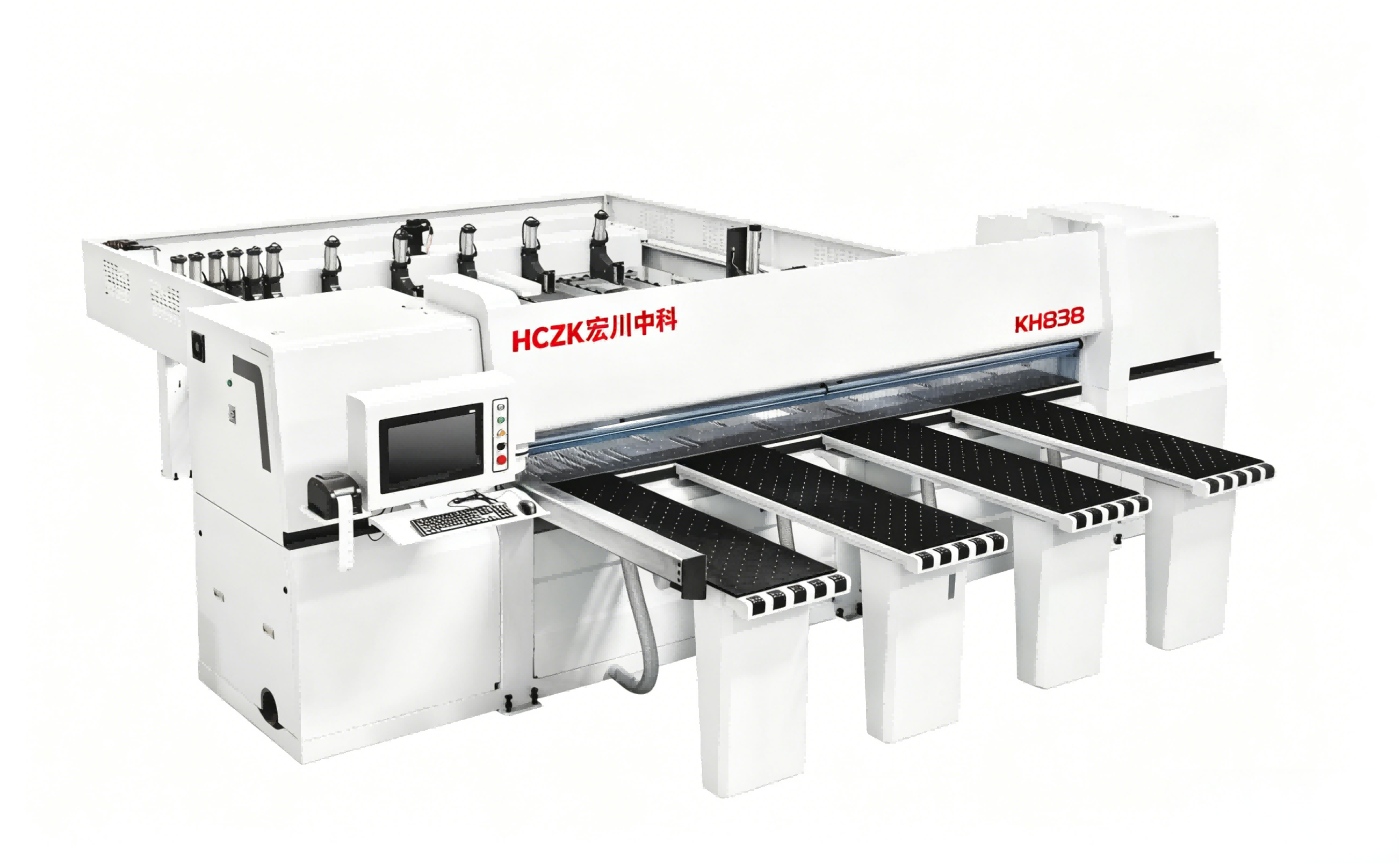

尺寸	Size	KH838
最大锯切长度	Maximum cutting length	3800mm
最大锯切厚度	Maximum cutting thickness	120mm
最大锯切宽度	Maximum cutting width	3800mm
纵切最小板材尺寸	Minimum panel size for longitudinal cutting	5mm
横切最小板材尺寸	Minimum panel size for cross cutting	40mm
主锯片外径	Outer diameter of main saw blade	300mm-450mm
主锯片内径	Inner diameter of main saw blade	75mm
气浮台规格	Air float table specifications	1750*540mm
机床外形尺寸	Machine tool overall dimensions	6160*6400*1900mm
显示屏	Display screen	19 寸
功率	Power
主锯功率	Main saw power	18.5kw
副锯电机功率	Auxiliary saw motor power	2.2kw
锯车伺服电机功率	Saw carriage servo motor power	2.0kw
机械手伺服电机	Manipulator servo motor	2.0kw
侧靠电机	Side pushing motor	0.55kw
高压风机	High-pressure blower	4kw+4kw
总功率	Total power	32kw
其他	Other
定位方式	Positioning method	自动 (Automatic)
伺服定位精度	Servo positioning accuracy	0.02mm
锯切精度	Sawing accuracy	±0.1mm
主锯转速	Main saw speed	0-4200r/min
锯切速度	Sawing speed	0-100 m/min
回程速度	Return speed	120 m/min
空气压力	Air pressure	0.6-0.8mpa
