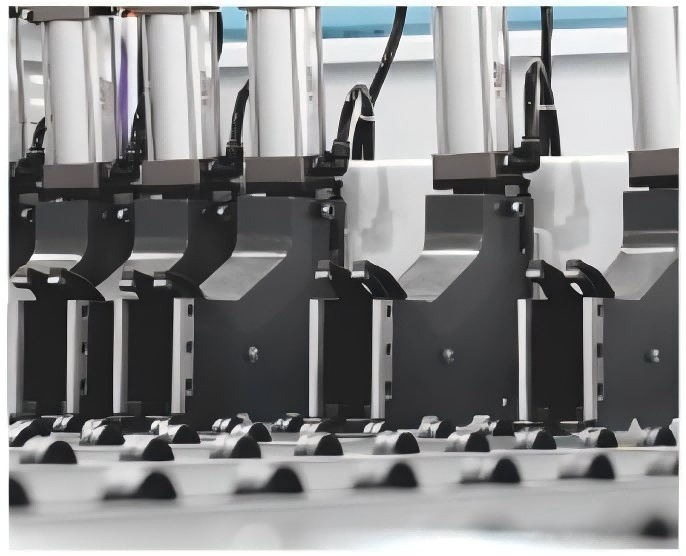

裹胶双指机械手

Adhesive coated dual finger robotic arm

九组双指裹胶机械手夹料，抓料稳准有力，提高小板锯切效率，确保板材精确裁切，避免板材刮伤。

Nine sets of double-finger rubber-coated clamping manipulators ensure secure and precise grip,

boosting efficiency in small-panel sawing, guaranteeing accurate cutting while preventing surface scratches.

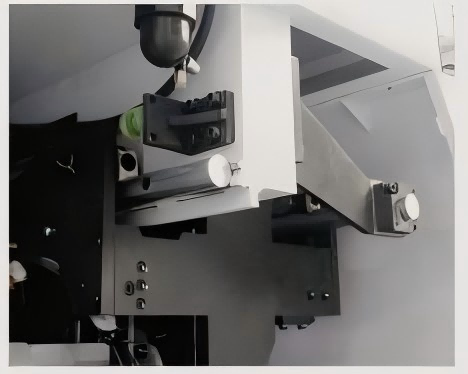

加粗圆棒导轨

Thickened round bar guide rail

圆形轨道双边运行导向，锯路直线运行，噪音低精度高，运行平滑顺畅，不沾灰，不卡槽，易清理。

Bilateral circular rail guidance ensures straight cutting paths, delivering low-noise, high-precision

operation with smooth movement that resists dust, prevents jamming, and simplifies cleaning.

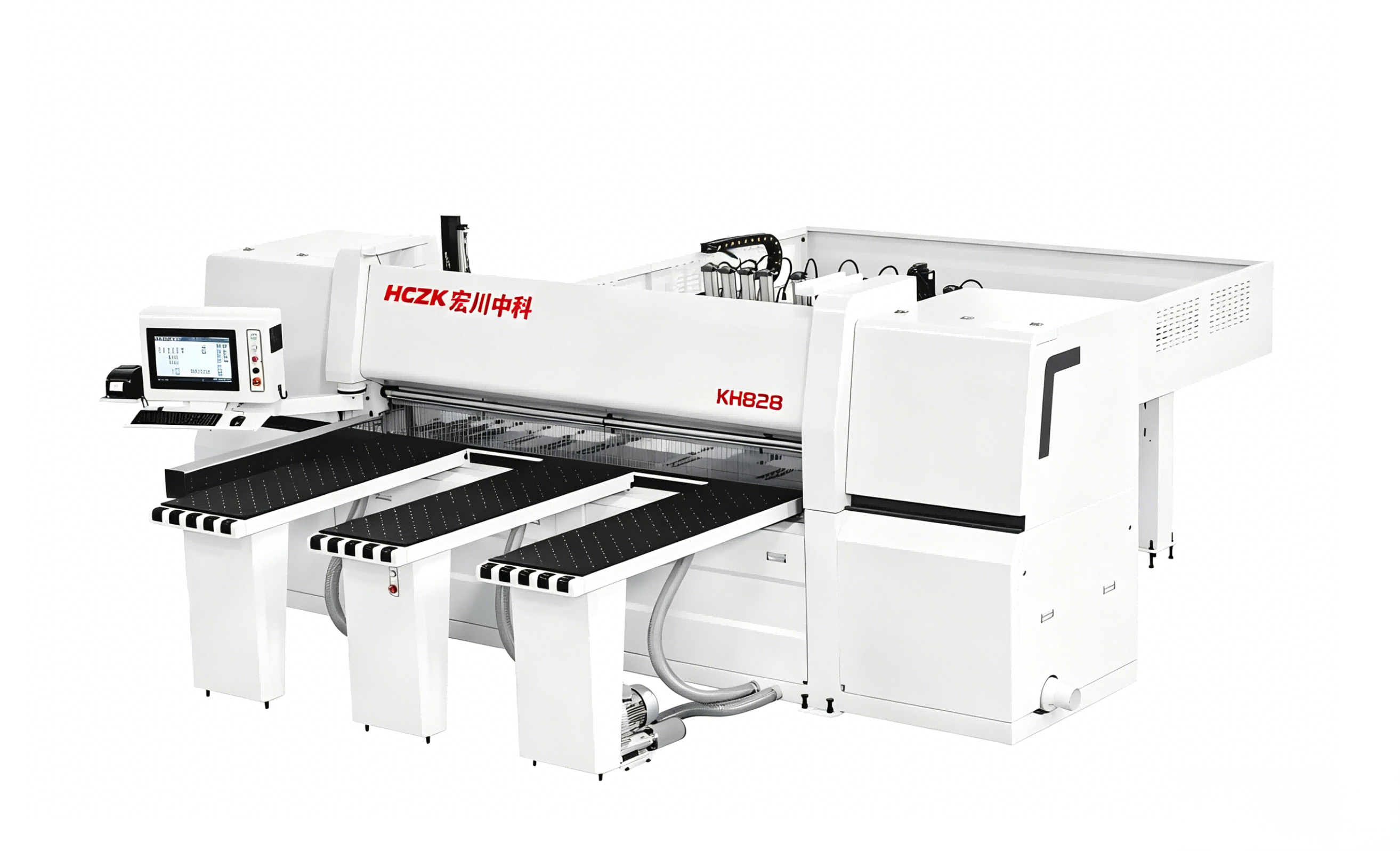

尺寸	Size	KH828
最大锯切长度	Maximum cutting length	2800mm
最大锯切厚度	Maximum cutting thickness	120mm
最大锯切宽度	Maximum cutting width	2800mm
纵切最小板材尺寸	Minimum panel size for longitudinal cutting	5mm
横切最小板材尺寸	Minimum panel size for cross cutting	40mm
主锯片外径	Outer diameter of main saw blade	300mm-450mm
主锯片内径	Inner diameter of main saw blade	75mm
气浮台规格	Air float table specifications	1750*540mm
机床外形尺寸	Machine tool overall dimensions	5160*5500*1900mm
显示屏	Display screen	19 寸
功率	Power
主锯功率	Main saw power	18.5kw
副锯电机功率	Auxiliary saw motor power	2.2kw
锯车伺服电机功率	Saw carriage servo motor power	2.0kw
机械手伺服电机	Manipulator servo motor	2.0kw
侧靠电机	Side pushing motor	0.55kw
高压风机	High-pressure blower	4kw+2.2kw
总功率	Total power	32kw
其他	Other
定位方式	Positioning method	自动 (Automatic)
伺服定位精度	Servo positioning accuracy	0.02mm
锯切精度	Sawing accuracy	±0.1mm
主锯转速	Main saw speed	0-4200r/min
锯切速度	Sawing speed	0-100 m/min
回程速度	Return speed	120 m/min
空气压力	Air pressure	0.6-0.8mpa
